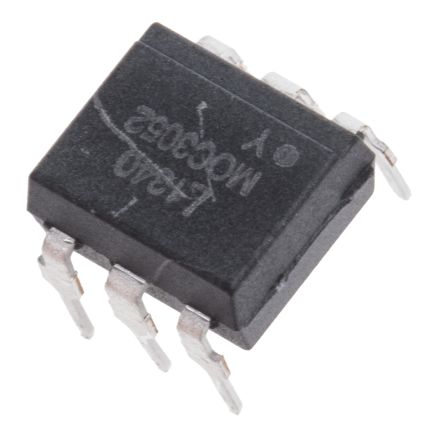

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
MOC3052 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | PDIP-6 |
| Power Rating | 0.3333333333333333 W |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Forward Voltage | 1.2 V |
| Power Dissipation | 330 mW |
| Isolation Voltage | 5000 Vrms |
| Holding Current | 400 µA |
| Forward Current | 50 mA |
| Output Voltage (Max) | 420 VAC |
| Input Current (Min) | 50 mA |
| Maximum Forward Voltage (Max) | 1.4 V |
| Forward Current (Max) | 50 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 330 mW |
| Show | |
| Size-Length | 7.3 mm |
| Size-Width | 6.5 mm |
| Size-Height | 3.5 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
