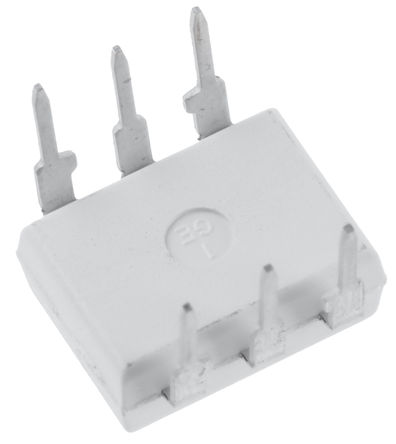

Image is for your reference only,please check specifications for details

MOC3052M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC9385684
Category:
Optocoupler, Optoisolator
Package:
DIP-6
Datasheet:
Datasheet 3D Model
Description:
6Pin DIP Random-Phase Triac Driver Optocoupler, 6LD, MDIP,OPTO,WHITE,.300 WIDE, 1000/BULK
Stock Locations:
Availability:
9,000 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MOC3052M is a 600V Random Phase TRIAC Driver Output Optocoupler consists of a AlGaAs infrared emitting diode optically coupled to a non-zero-crossing silicon bilateral AC switch (TRIAC). This device isolate low voltage logic from 115VAC and 240VAC lines to provide random phase control of high current TRIACs or thyristors. This device features greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads.
Excellent IFT stability
IR emitting diode has low degradation

Show

MOC3052M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Voltage Rating (DC)	600 V
Input Voltage (DC)	1.15 V
Output Voltage	600 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.18 V
Input Current	10.0 mA
Power Dissipation	0.33 W
Isolation Voltage	4.17 kV
Holding Current	220 µA
Forward Current	60 mA
Input Voltage (Max)	1.5 V
Output Voltage (Max)	420 VAC
Input Current (Min)	60 mA
Reverse Breakdown Voltage	3 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	60 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	330 mW
Input Voltage	1.15 V
	Show
Size-Height	5.08 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
