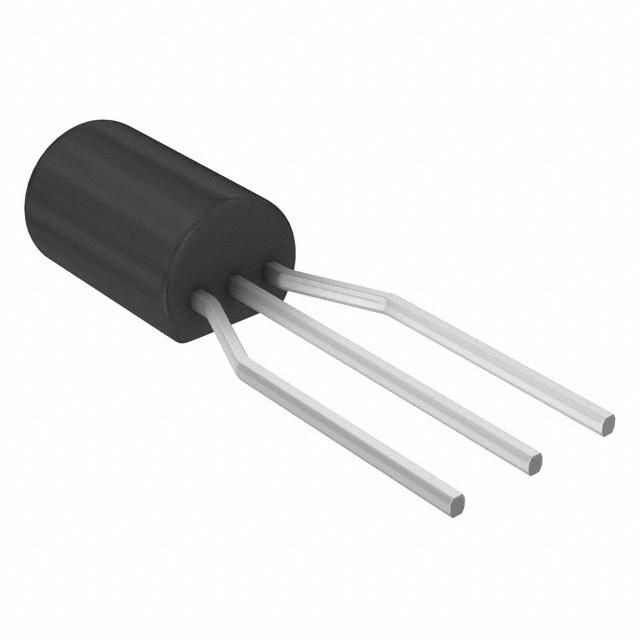

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MPSW92 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Voltage Rating (DC)	-300 V
Current Rating	-500 mA
Polarity	PNP
Power Dissipation	1.00 W
Breakdown Voltage (Collector to Base)	-300 V (min)
Breakdown Voltage (Collector to Emitter)	300 V
Continuous Collector Current	0.5A
hFE Min	25 @30mA, 10V
Input Power (Max)	1 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	Show
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
