Description

The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.
The MSP430x13x and the MSP430x14x(1) series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not implemented on the MSP430F14x1 devices), one or two universal serial synchronous/asynchronous communication interfaces (USART), and 48 I/O pins.
Typical applications include sensor systems that capture analog signals, convert them to digital values, and process and transmit the data to a host system. The timers make the configurations ideal for industrial control applications such as ripple counters, digital motor control, EE-meters, hand-held meters, etc. The hardware multiplier enhances the performance and offers a broad code and hardware-compatible family solution.

Show

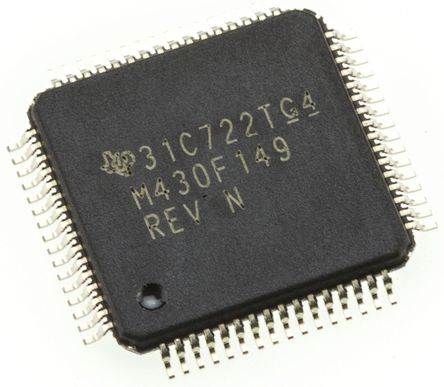

MSP430F149IPAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Frequency	8 MHz
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Number of Positions	64 Position
Clock Speed	8.00 MHz
RAM Memory Size	2 KB
Number of Bits	16 Bit
FLASH Memory Size	60 KB
Number of I/O Pins	48 IO
Access Time	8.00 µs
Core Architecture	MSP430
Number of UARTs	2 UART
Number of ADCs	1 ADC
FRAM Memory Size	0 B
Number of Inputs and Outputs	48 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	10.2 mm
Size-Width	10.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
