Description

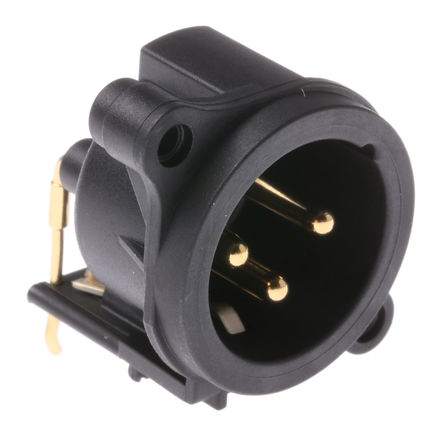

The NC3MAH is a 3-pin XLR Audio Plug with gold-plated brass contacts, 0.2µm AuCo over 2µm NiP15-plated contact, polyamide (PA 6.6 30% GR) insert and steel CK67 locking element and black plastic flange. Round plastic body XLR PCB mount panel connector. Male XLR receptacle, grounding - Separate ground contact to mating connector shell and front panel, horizontal PCB mount.
50V Voltage rating
6A Current rating
* >2GR (Initial) and >1GR (after damp heat test) Insulation resistance
UL94V-0 Flame-rated housing
Plastic housing with steel latch lock

Show

NC3MAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Number of Contacts	3 Contact
Gender	Male
Contact Plating	Gold
Voltage Rating (DC)	50.0 V
Voltage Rating (AC)	250 V
Current Rating	6 A
Insulation Resistance	10000 MΩ
Orientation	Right Angle
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Contact Resistance	5 mΩ
Number of Mating Cycles	1000 Cycle
Current Rating (Max)	6 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (Max)	50 V
Voltage Rating	50 V
Maximum Contact Resistance (Max)	6 mΩ
	Show
Size-Length	25.35 mm
Size-Width	22.2 mm
Size-Height	25.35 mm
Color	Black
Contact Material	Brass
Material	Plastic
Operating Temperature	-30℃ ~ 80℃
Housing Material	Plastic
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536694040
ECCN Code	EAR99
