Description

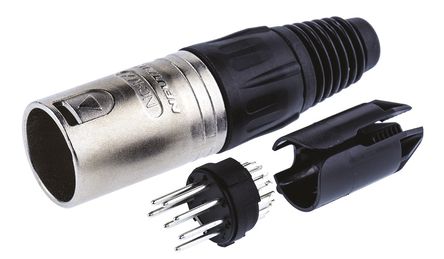

The NC7MX from Neutrik is a 7 pole XLR male cable connector. This industry standard XLR cable connector is easy to assemble with only 4 parts and no screws. It has compact design with sturdy die-cast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables. The boot with rubber gland gives high protection against bending stresses. Coloured rings and boots available for coding and marking. The cable outer diameter of this XLR connector ranges from 3.5mm to 8mm.
Long lasting and durable
Contact resistance is less than or equal to 3mohm
Rated voltage is less than 50V and rated current per contact is 5A
UL ECBT2.E135070 certified
Maximum wire size is 18AWG (1mm²) and greater than 1000 mating cycles
Silver plated brass solder contacts, polyurethan boot and polyamide insert material
Zinc die-cast latch lock and zinc die-cast shell with nickel plating
Flammability rating meets UL94 HB
IP 40 protection class and IEC 61076-2-103 compliant
Temperature range from -30°C to 80°C

Show

NC7MX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Number of Pins	7 Pin
Number of Contacts	7 Contact
Gender	Male
Contact Plating	Silver
Voltage Rating (AC)	150 V
Current Rating	5 A
Insulation Resistance	2000 MΩ
Orientation	Straight
Number of Positions	7 Position
Contact Resistance	3.00 mΩ
Current Rating (Max)	5A/触头
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (Max)	50 V
Voltage Rating	50 V
Maximum Contact Resistance (Max)	3 mΩ
	Show
Color	Nickel
Contact Material	Brass
Operating Temperature	-30℃ ~ 80℃
Packaging	Bulk
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8536694020
ECCN Code	EAR99
