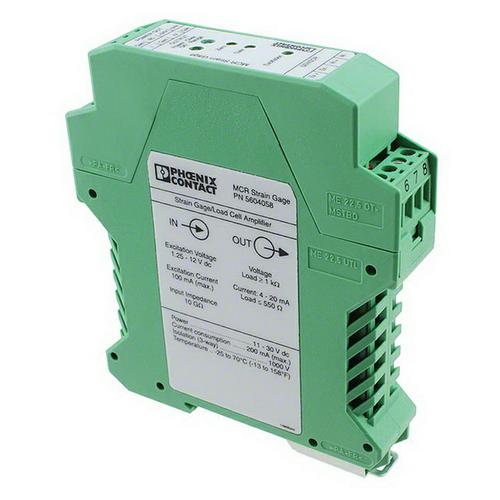

Image is for your reference only,please check specifications for details
- 5604058 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC50257703
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:"Phoenix 5604058 MCR-SGA-4/6 Strain Gage/Load Cell Amplifier 3Pole, Green, "
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Features:**
- * Accepts all types of strain gage and load cells
- * 120Ω to 20,000Ω bridge resistance
- * 1.25–12 volt adjustable excitation
- * Selectable filter/response time
- * 3-way 1,000 volts isolation (2-way for Low Noise version)
- * Output options (±10, 0–10, ±–5 volts, 4–20 mA)
- * Coltage and shunt calibration options
- **Sensors Supported:**
- * Load cells
- * Strain gages
- * Torque transducers
- * Pressure transducers
- * Accelerometers (Piezoresistive)
5604058 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw, DIN Rail |
| Current Rating | 100 mA |
| Supply Current | 200 mA |
| Supply Voltage | 11V ~ 30V |
| Show | |
| Size-Length | 110.99 mm |
| Size-Width | 22.6 mm |
| Size-Height | 99.06 mm |
| Operating Temperature | -25℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8543709650 |
| ECCN Code | EAR99 |
