Description

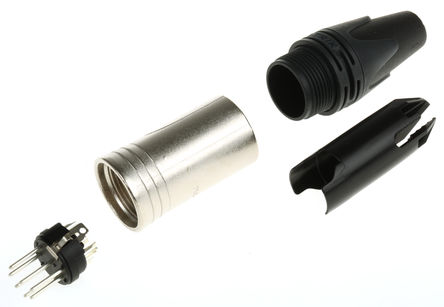

The NC7MXX from Neutrik is a 7 pole male XLR cable connector with sleek and ergonomic design. This more reliable and easier to assemble connector provides improved contact integrity and cable strain relief. The valuable and handy XLR male connector has improved locking recess without window and more stringent housing increases durability. The improved chuck type strain relief provides higher pull-out force which makes assembly easier and faster. Boot with polyurethane gland gives high protection to cable bending stresses. The coloured rings and boots available for coding or identification. This long lasting and dependable connector has cable outer diameter range from 3.5mm to 8mm. Internal thread on shell is well protected against any damage.
Branded with unique hologram, genuine and authentic connector
Contact resistance is less than or equal to 3mohm
Rated voltage is less than 50V and rated current per contact is 5A
UL ECBT2.E135070 and cUL ECBT8.E135070 certified
Maximum wire size is 18AWG (1mm²) and greater than 1000 mating cycles
Silver plated brass solder contacts and polyamide insert material
Zinc die-cast latch lock and zinc die-cast shell with nickel plating
Flammability rating meets UL94 HB
IP 40 protection class and IEC 61076-2-103 compliant
Temperature range from -30°C to 80°C

Show

NC7MXX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Number of Pins	7 Pin
Case/Package	Metal
Number of Contacts	7 Contact
Gender	Male
Wire Gauge	18.0 AWG
Contact Plating	Silver
Voltage Rating (AC)	150 V
Current Rating	5 A
Orientation	Straight
Flammability Rating	UL 94 HB
Number of Positions	7 Position
Contact Resistance	3.00 mΩ
Number of Mating Cycles	1000 Cycle
Contact Current Rating	5.00 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	50 V
	Show
Color	Nickel
Contact Material	Brass
Operating Temperature	-30℃ ~ 80℃
Housing Material	Zinc Die-Cast
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8536694020
ECCN Code	EAR99
