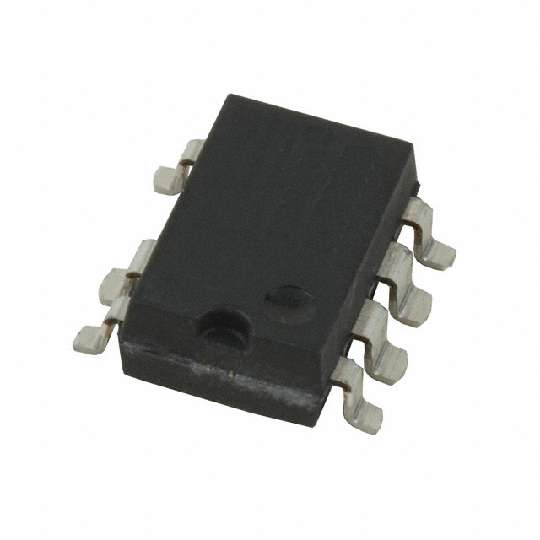

Image is for your reference only,please check specifications for details
- NCP1014APL100R2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC102418290
-
Category:PWM Controller IC
-
Package:PDIP-7
-
Datasheet:Datasheet 3D Model
-
Description:Current Mode PWM Controller 450mA 7Pin PDIP SMD T/R
-
Stock Locations:
-
Availability:210 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.57
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCP101X series integrates a fixed--frequency current--mode controller and a 700 V MOSFET. Housed in a PDIP--7, PDIP--7 Gull Wing, or SOT--223 package, the NCP101X offers everything needed to build a rugged and low--cost power supply, including soft--start, frequency jittering, short--circuit protection, skip--cycle, a maximum peak current setpoint and a Dynamic Self--Supply (no need for an auxiliary winding).
- Unlike other monolithic solutions, the NCP101X is quiet by nature: during nominal load operation, the part switches at one of the available frequencies (65 -- 100 -- 130 kHz). When the current setpoint falls below a given value, e.g. the output power demand diminishes, the IC automatically enters the so--called skip--cycle mode and provides excellent efficiency at light loads. Because this occurs at typically 1/4 of the maximum peak value, no acoustic noise takes place. As a result, standby power is reduced to the minimum without acoustic noise generation.
- Features
- • Built--in 700 V MOSFET with Typical RDSon of 11 Ω and 22 Ω
- • Large Creepage Distance Between High--Voltage Pins
- • Current--Mode Fixed Frequency Operation: 65 kHz – 100 kHz -- 130 kHz
- • Skip--Cycle Operation at Low Peak Currents Only: No Acoustic Noise!
- • Dynamic Self--Supply, No Need for an Auxiliary Winding
- • Internal 1.0 ms Soft--Start
- • Latched Overvoltage Protection with Auxiliary Winding Operation
- • Frequency Jittering for Better EMI Signature
- • Auto--Recovery Internal Output Short--Circuit Protection
- • Below 100 mW Standby Power if Auxiliary Winding is Used
- • Internal Temperature Shutdown
- • Direct Optocoupler Connection
- • SPICE Models Available for TRANsient Analysis
- • These are Pb--Free and Halide--Free Devices
- Typical Applications
- • Low Power AC/DC Adapters for Chargers
- • Auxiliary Power Supplies (USB, Appliances,TVs, etc.)
NCP1014APL100R2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | PDIP-7 |
| Frequency | 100 kHz |
| Power Rating | 19 W |
| Number of Outputs | 1 Output |
| Output Current | 450 mA |
| Breakdown Voltage | 700 V |
| Power Dissipation | 19.0 W |
| Switching Frequency | 100 kHz |
| Duty Cycle | 67 % |
| Maximum Duty Cycle | 72 % |
| Operating Temperature (Max) | 150 ℃ |
| Input Voltage | 8.1V ~ 10V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
