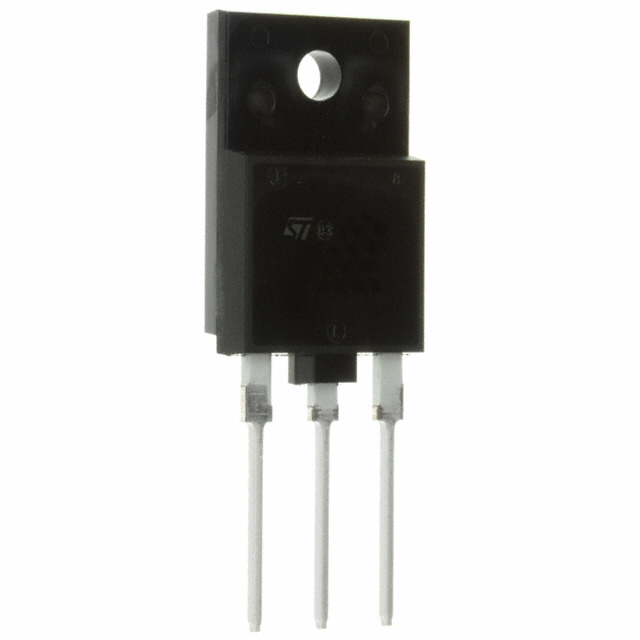

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ST8812FX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	ISOWATT-218FX
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	600 V
Continuous Collector Current	7A
Input Power (Max)	50 W
Power Dissipation (Max)	50 W
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
