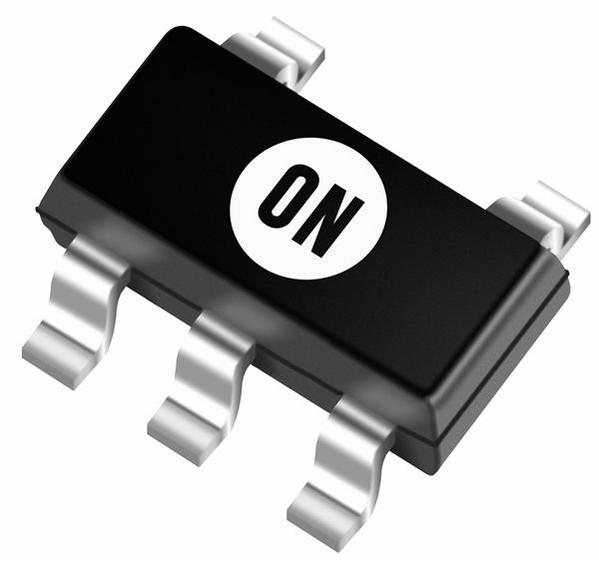

Image is for your reference only,please check specifications for details
- NCP1402SN33T1 - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC143222544
-
Category:DC to DC Converter
-
Package:TSOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:Преобразователь DC-DC, -0,3 В до 6 В, повышающий, один выход 3,3 В, 0,2 А, 5-контактный TSOP, лента и катушка
-
Stock Locations:
-
Availability:239 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.53
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 200 мА, PFM повышающий микромощный импульсный стабилизатор • Чрезвычайно низкое напряжение запуска 0,8 В • Работа при напряжении ниже 0,3 В • Высокая эффективность 85% (Vin = 2,0 В, VOUT = 3,0 В, 70 мА) • Низкий рабочий ток 30 мкА (VOUT = 1,9 В) • Точность выходного напряжения ± 2,5% • Низкие пульсации преобразователя, типично 30 мВ • Требуется всего три внешних компонента • Возможность отключения по сигналу Chip Enable для продления срока службы батареи • Микроминиатюрные корпуса Thin SOT-23-5 • Доступны бессвинцовые корпуса • Сотовые телефоны • Пейджеры • Карманные персональные компьютеры (PDA) • Электронные игры • Портативные аудиоустройства (MP3) • Видеокамеры • Цифровые фотоаппараты • Ручные измерительные приборы
NCP1402SN33T1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TSOT-23-5 |
| Supply Voltage (DC) | 800 mV |
| Number of Outputs | 1 Output |
| Output Voltage | 3.30 V |
| Output Current | 200 mA |
| Switching Frequency | 200kHz (MAX) |
| Input Voltage (Max) | 3.3 V |
| Input Voltage (Min) | 0.8 V |
| Output Voltage (Min) | 3.3 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
