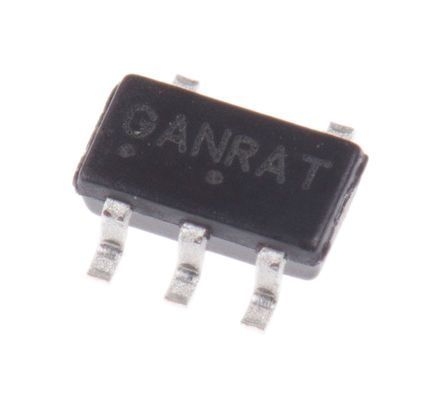

Image is for your reference only,please check specifications for details

NCP1522BSNT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC15485171
Category:
DC to DC Converter
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.9V to 3.3V 0.6A 5Pin TSOP T/R
Stock Locations:
Availability:
1,364 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.51

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Adjust the voltage level of your devices with this step down NCP1522BSNT1G DC to DC converter from ON Semiconductor. This converter"s single output can produce a current up to 0.6 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 5.5 V. With an adjustable output that has a voltage of 0.9 to 3.3 V, this is power management at its best. This converter is 93 % efficient. At a load regulation of 0.0008%/mA(Typ) and line regulation of 0.08%(Typ) a constant current can be produced at the output of your circuit. This part offers a switching frequency of 3000(Typ) kHz in order to work properly. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

NCP1522BSNT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	0.9V ~ 3.3V
Output Current	600 mA
Number of Positions	5 Position
Switching Frequency	3 MHz
Topology	Step-Down
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	3.3 V
Output Voltage (Min)	900 mV
Output Current (Max)	0.6 A
Output Current (Min)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
