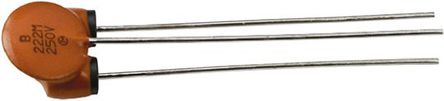

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

DSS9NC52A222Q55B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Radial - 3 Leads
Voltage Rating (DC)	100 V
Operating Voltage	100 V
Current Rating	7 A
Capacitance	2200 pF
Number of Channels	1 Channel
Shielding	No
Ripple Current	7000 mA
Current Rating (Max)	7 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (Max)	100 VDC
Voltage Rating	100 V
	Show
Size-Length	12 mm
Size-Width	7.5 mm
Size-Height	10.5 mm
Lead Length	25 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
