NCP2811BFCT1G ON Semiconductor - Audio Amplifier IC

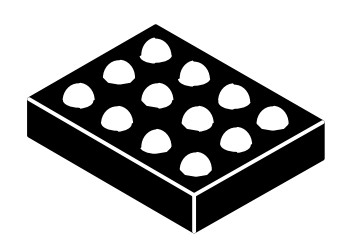

Image is for your reference only,please check specifications for details

NCP2811BFCT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC111289983
Category:
Audio Amplifier IC
Package:
Flip-Chip-12
Datasheet:
Datasheet 3D Model
Description:
Аудио усилитель для наушников 2Кан стерео 0.11Вт класс-AB 12Выв Flip-Chip лента и катушка
Stock Locations:
Availability:
223 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.38

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

NCP2811 is a dual audio power amplifier designed for portable communication device applications such as mobile phones. This part is capable of delivering 27 mW of continuous average power into a 16 Ω load from a 2.7 V power supply with a THD+N of 1%. Based on the power supply delivered to the device, an internal power management block generates a symmetrical positive and negative voltage. Thus, the internal amplifiers provide outputs referenced to Ground. In this NOCAP configuration, the two external heavy coupling capacitors can be removed. It offers significant space and cost savings compared to a typical stereo application. NCP2811 is available with an external adjustable gain (version A), or with an internal gain (version B). It reaches a superior PSRR and noise floor. Thus, it offers high fidelity audio sound, as well as a direct connection to the battery. It contains circuitry to prevent from Pop and Click noise that would otherwise occur during turn on and turn off transitions. The device is available in 12 bump CSP package (2 x 1.5 mm) which help to save space on the board.
Features | | Benefits
---|---|---
| | | | |
NoCapTM Output Eliminate DC-Blocking Capacitors
| |
Save board area and component cost
High PSRR : -100 dB
| |
Direct connection to the battery
Pop and Click protection circuitry
| |
High quality audio playback
Internal gain (-1.5 V/V) or external gain
| |
2.7V-5.0V Operation
| |
Thermal overload protection circuitry
| |
