Description

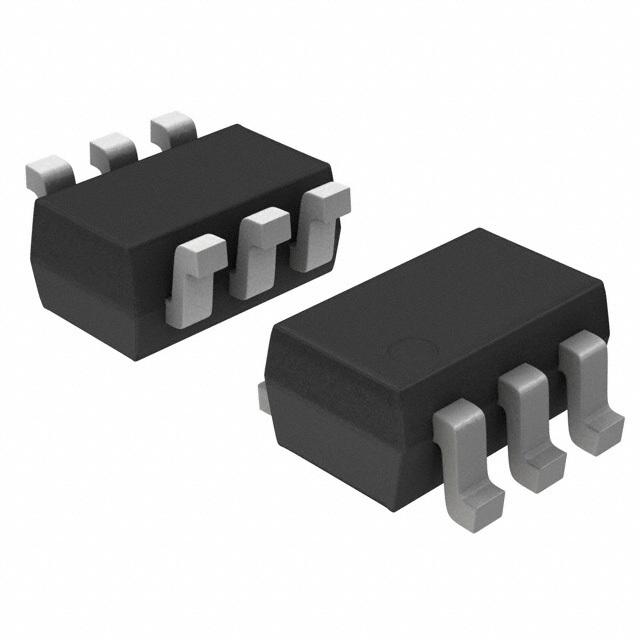

The PMGD290UCEA is a complementary N/P-channel enhancement-mode FET in a very small surface-mount plastic package using Trench MOSFET technology. It is suitable for relay driver, high-speed line driver, low-side load-switch and switching circuit applications.
Very fast switching characteristics

Show

PMGD290UCEAX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.29 Ω
Power Dissipation	0.445 W
Threshold Voltage	750 mV
Input Capacitance	55 pF
Drain to Source Voltage (Vds)	20 V
Input Capacitance (Ciss)	83pF @10V(Vds)
Input Power (Max)	280 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	320 mW
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
