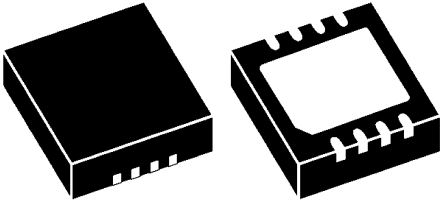

Image is for your reference only,please check specifications for details
- NCP3063BMNTXG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC35099666
-
Category:DC to DC Converter
-
Package:DFN-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 3V to 40V Non-Inv/Inv/Step Up/Step Down Single-Out 1.5A 8Pin DFN EP T/R
-
Stock Locations:
-
Availability:270 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.25
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This Buck Boost Inverting Switching Regulator consists of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. New features include an internal thermal shutdown protection and cycle-by-cycle current limit. This series was specifically designed to be incorporated in step-down (buck) and step-up (boost) and voltage-inverting applications with a minimum number of external components. The NCV3063 is available for automotive applications. See NCP3064 for product with ENABLE feature.
- Features | | Benefits
- ---|---|---
- | | | | |
- Operation up to 40 V Input
- | |
- Flexibility to operate over a wide range of applications
- Frequency operation up to 150 KHz
- | |
- Reduced output capacitance and ability to use SMT inductor
- Internal thermal Shutdown with hysteresis
- | |
- This feature is provided to prevent catastrophic failures from accidental device overheating
- Cycle-by-Cycle Current Limiting
- | |
- Improved protection capability over MC34063
- Excel Based Design Tool
- | |
- Calculate support components and estimate performance.
NCP3063BMNTXG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | DFN-8 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 1.25V ~ 40V |
| Output Current | 1.5 A |
| Number of Positions | 8 Position |
| Switching Frequency | 150 kHz |
| Topology | Step-Up, Step-Down |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 40 V |
| Output Voltage (Min) | 1.25 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage (Min) | 3 V |
| Input Voltage | 40 V |
| Show | |
| Size-Length | 4 mm |
| Size-Width | 4 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
