- NCP5623CMUTBG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC10652258
-
Category:LED Driver, LED Display Driver
-

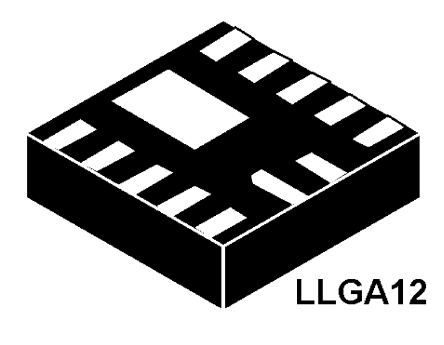

Package:LLGA-12
-
Datasheet:Datasheet 3D Model
-
Description:LED Driver IC 3 Output DC DC Regulator Switched Capacitor (Charge Pump) 30mA 12-LLGA (2x2)
-
Stock Locations:
-
Availability:1,662 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.29
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCP5623C mixed analog circuit is a triple output LED driver dedicated to the RGB illumination or backlight LCD display.
- The built−in DC/DC converter is based on a high efficient charge pump structure with operating mode 1x and 2x. It provides a 94% peak efficiency. The tiny package makes the device suitable for room limited portable applications.
- Features
- • 2.7 to 5.5 V Input Voltage Range
- • RGB Function Fully Supported
- • Programmable Integrated Gradual Dimming
- • 90 mA Output Current Capability
- • 94% Peak Efficiency
- • Built−in Short Circuit Protection
- • Provides Three Independent LED Drives
- • Support I2C Protocol
- • Embedded OVP / Open Load Protection
- • This is a Pb−Free Device
- Typical Applications
- • Multicolor Illuminations
- • Portable Back Light
- • Digital Cellular Phone Camera Photo Flash
- • LCD and Key Board Simultaneous Drive
NCP5623CMUTBG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 12 Pin |
| Case/Package | LLGA-12 |
| Frequency | 1 MHz |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 3 Output |
| Output Voltage | 4.4V ~ 5.7V |
| Number of Positions | 12 Position |
| Power Dissipation | 200 mW |
| Switching Frequency | 1 MHz |
| Topology | Charge Pump |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Max) | 5.7 V |
| Output Current (Max) | 90 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 200 mW |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 2 mm |
| Size-Height | 0.55 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
