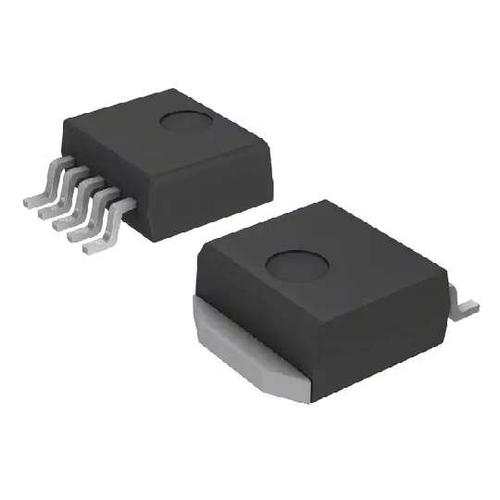

Image is for your reference only,please check specifications for details

NCP59302DSADJR4G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC19050888
Category:
Voltage Regulator
Package:
TO-263-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP59302DSADJR4G LDO Voltage Regulator, Adjustable, 2.24V to 13.5V in, 300mV drop, 1.24V to 13V/3A out, TO-263-5
Stock Locations:
Availability:
1,513 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.85

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP59302DSADJR4G is a high precision very low-dropout (VLDO) low ground current Positive Voltage Regulator that is capable of providing an output current in excess of 3A with a typical dropout voltage lower than 300mV at 3A load current. The device is stable with ceramic output capacitors. The device can withstand up to 18V maximum input voltage. Internal protection features consist of output current limiting, built-in thermal shutdown and reverse output current protection.
Low ground current
Logic compatible enable pin
Fast transient response
Operation up to 13.5V input voltage

Show

NCP59302DSADJR4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1.24V ~ 13V
Output Current	3 A
Number of Positions	5 Position
Polarity	P-Channel
voltage rating	300 mV
Input Voltage (Max)	13.5 V
Input Voltage (Min)	2.24 V
Output Voltage (Max)	13 V
Output Voltage (Min)	1.24 V
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.24V ~ 13.5V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
