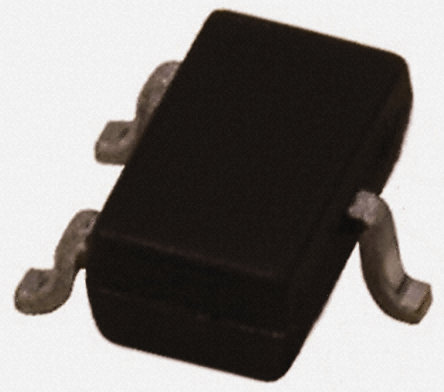

Image is for your reference only,please check specifications for details
- NCP698SQ50T1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC64836866
-
Category:Voltage Regulator
-
Package:SC-70-4
-
Datasheet:Datasheet 3D Model
-
Description:NCP698SQ50T1G, LDO Voltage Regulator, 5V 2%, Maximum of 6Vin, 4Pin SC-82AB
-
Stock Locations:
-
Availability:2,466 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.28
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 150mA SC-82AB
NCP698SQ50T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SC-70-4 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 150 mA |
| Supply Current | 6 µA |
| Number of Positions | 4 Position |
| Polarity | P-Channel |
| Quiescent Current | 6 µA |
| voltage rating | 280 mV |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 6 V |
| Output Voltage (Min) | 5 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±2 % |
| Supply Voltage | 6 V |
| Input Voltage | ≤6 V |
| Show | |
| Size-Length | 2.2 mm |
| Size-Width | 1.35 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
