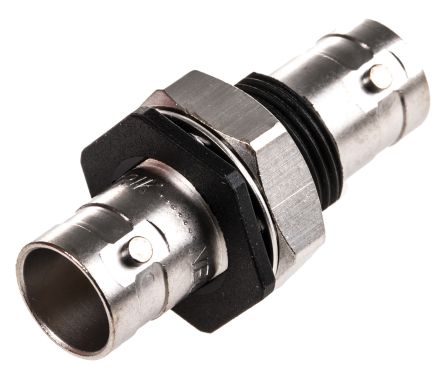

Image is for your reference only,please check specifications for details

NBB75FI - Neutrik
Manufacturer:
Neutrik
ManyChip's Part#:
MC15242318
Category:
RF Coaxial Connector, RF Connector
Datasheet:
Datasheet 3D Model
Description:
Adapter BNC female/female insulated [Neutrik] NBB75FI Adapter BNC female/female insulated
Stock Locations:
Availability:
80 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.25

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NBB75FI from Neutrik is a feedthrough isolated BNC female cable jack for panel mount. It offers a true 75ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use. The isolated panel mount solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential.
HD, SDI, video, AES/EBU, composite, YUV, RGB, RGBH, RGBHV signal types
Brass with gold plated cage type centre contacts, PTFE insert and polyacetal (POM) shell
Front mounting
True 75ohm design meets the stringent HD requirements
Greater than 1000 mating cycles
Bayonett locking device
Temperature range from -30°C to +85°C
Rated voltage is less than 50V
Dielectric strength is 1.5KVDC

Show

NBB75FI Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Bulkhead
Gender	Male
Contact Plating	Gold
Voltage Rating (AC)	500 V
Insulation Resistance	5000 MΩ
Number of Mating Cycles	1000 Cycle
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
	Show
Size-Length	34 mm
Contact Material	Brass
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8536694030
ECCN Code	EAR99
