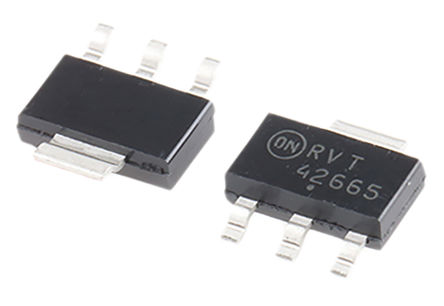

Image is for your reference only,please check specifications for details

NCV4266ST50T3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC7275811
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCV4266ST50T3G Fixed LDO Voltage Regulator, 5.5V to 40V, 250mV Dropout, 5Vout, 150mAout, SOT-223-3
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV4266ST50T3G is a 5V fixed output low-dropout (LDO) Linear Regulator includes wide operating temperature and input voltage ranges. The device has a high peak input voltage tolerance and reverse input voltage protection. The device also provides overcurrent protection, overtemperature protection and enable function for control of the state of the output voltage.
Enable input
Very low current consumption
2% Output voltage accuracy
45V Peak transient voltage, -42V reverse voltage, short circuit, thermal overload (fault protection)
AEC-Q100 qualified and PPAP capable

Show

NCV4266ST50T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	150 mA
Number of Positions	3 Position
Quiescent Current	0.01 mA
voltage rating	250 mV
Input Voltage (Max)	40 V
Input Voltage (Min)	5.5 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	≤45 V
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
