DRV8846EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC10558529
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
Evaluation Board, DRV8846 Dual H-Bridge Stepper Motor Driver, 4V - 18V Operating Voltage
Stock Locations:
Availability:
27 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 57.46

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

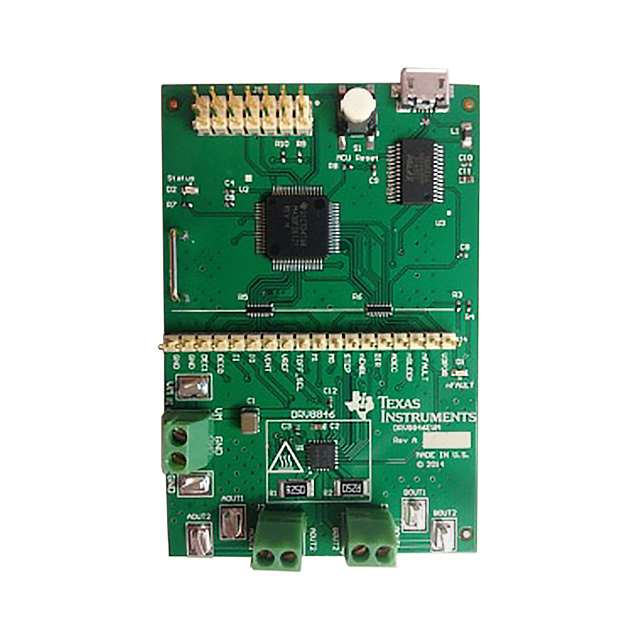

The DRV8846EVM is an Evaluation Module for evaluate the operation and performance of DRV8846, a highly integrated stepper motor controller and driver. The DRV8846 has been optimized to drive a single bipolar stepper with up to 1/32 microstepping with on-chip indexers. The board incorporates a MSP430 microcontroller and an USB interface chip. The USB chip allows for serial communications from a PC computer where a windows® application is used to schedule serial commands. These commands can be used to control each of the device"s signals and drive the stepper motor by issuing the step commands at the desired rate. The microcontroller firmware operates using internal index mode.
4 to 18V Operation voltage
1A RMS/1.4A Full-scale per H-bridge
STEP/DIR interface with up to 1/32 u-step indexer on-chip
Flexible current decay modes
Configurable PWM off-time
On-the-fly adjustable output current/torque scaling
Complete on-chip protection over-current, over-temperature, under-voltage and shoot-through
User-friendly GUI via MSP430 and USB interface
