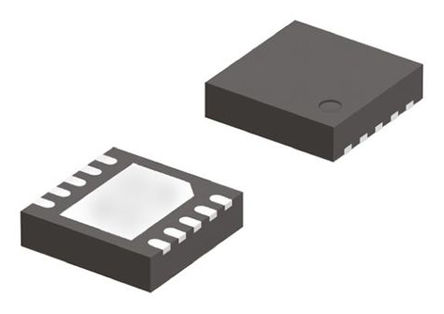

Image is for your reference only,please check specifications for details

NCV51400MWTXG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC38119492
Category:
Voltage Regulator
Package:
DFN-10
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCV51400MWTXG LDO Voltage Regulator, Fixed, AEC-Q100, 2.375V to 5.5V input, 3A out, DFN-10 New
Stock Locations:
Availability:
289 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.27

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV51400MWTXG is a 3A VTT termination regulator for DDR1, DDR2, DDR3, LPDDR3, DDR4 in 10 pin DFN package. This source/sink double data rate (DDR) termination regulator is specifically designed for low input voltage and low noise systems where space is a key consideration. It supports a remote sensing function and all power requirements for DDR VTT bus termination. The NCP51400 can also be used in low power chipsets and graphics processor cores that require dynamically adjustable output voltages. Built-in soft start, undervoltage lockout and overcurrent limit. It has VCC supply current of 0.7mA (TA = 25°C, EN = 3.3V, no load) and VCC shutdown current of 65µA (TA = 25°C, EN = 0V, VRI = 0V, no load). It is typically used in DDR memory termination, servers, networking equipment, telecom/datacom, GSM base station, graphics processor core supplies, Chipset/RAM supplies as low as 0.5V and active bus termination applications.
Automotive grade AEC-Q100 qualified and PPAP capable
Input voltage rails supports from 2.5V to 3.3V and 5V rails
PVCC voltage range from 1.1V to 3.5V
Integrated power MOSFETs and fast load transient response
Logic output pin to monitor VTT regulation (PGOOD)
Logic input pin for shutdown mode (EN)
Reference input allows flexible input tracking either directly or through resistor divider (VRI)
Remote sensing (VTTS) and thermal shutdown
Operating free air temperature range from -40°C to 125°C
Wettable flank option for enhanced optical inspection
