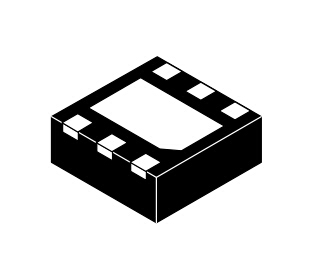

Image is for your reference only,please check specifications for details
- NCV8705MT33TCG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC17337800
-
Category:Voltage Regulator
-
Package:WDFN-6
-
Datasheet:Datasheet 3D Model
-
Description:500mA, Ultra-Low Iq, Ultra-Low Noise LDO Voltage Regulator 3.3V, WDFN6, WDFN6, 2x2, 0.65P, 3000-REEL
-
Stock Locations:
-
Availability:255 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.53
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Operating Input Voltage Range: 2.5 V to 5.5 V * Ultra-Low Quiescent Current of Typ. 13 uA * Very Low Dropout: 230 mV Typical at 500 mA * High PSRR: 71 dB at 1 kHz * Available in Fixed Voltage Output Options: 0.8 V to 3.5 V * Ultra-Low Noise: 12 uVrms from 100 Hz to 100 KHz * AEC-Q100 Qualified and PPAP Capable * Adjustable Operation from 0.8V
NCV8705MT33TCG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | WDFN-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| Number of Positions | 6 Position |
| Quiescent Current | 0.013 mA |
| voltage rating | 0.23V @500mA |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 0.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Accuracy | ±2 % |
| Input Voltage | ≤5.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
