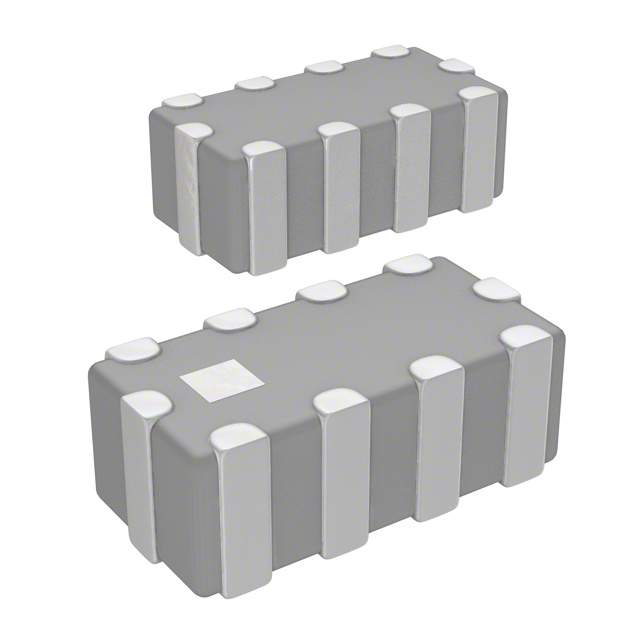

Image is for your reference only,please check specifications for details
- NFA18SL506X1A45L - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC4493518
-
Category:RFI Shielding
-
Package:0603
-
Datasheet:Datasheet 3D Model
-
Description:Ferrite Chip, 4 Function(s), 10V, 0.025A, EIA STD PACKAGE SIZE 0603, 10Pin
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- LC EMI Filter 2nd Order Low Pass 4 Channel 25mA 0603 (1608 Metric), Array, 10 PC Pad
NFA18SL506X1A45L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Number of Channels | 4 Channel |
| Current Rating (Max) | 0.025 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 10 VDC |
| Voltage Rating | 10 V |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.6 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
