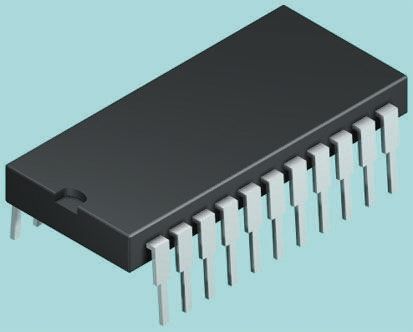

Image is for your reference only,please check specifications for details
- NJU39610D2 - NJR
-
Manufacturer:NJR
-
ManyChip's Part#:MC14993553
-
Category:Motor Driver
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Dual Digital to Analog Converter 7Bit Microstepping Motor Controller - DIP-22
-
Stock Locations:
-
Availability:2,718 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.27
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Bipolar Motor Driver Parallel 22-DIP
NJU39610D2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 22 Pin |
| Case/Package | DIP-22 |
| Number of Bits | 7 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 4.75V ~ 5.25V |
| Show | |
| Size-Length | 27.81 mm |
| Size-Width | 9.02 mm |
| Size-Height | 5.33 mm |
| Operating Temperature | -20℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8542390000 |
| ECCN Code | EAR99 |
