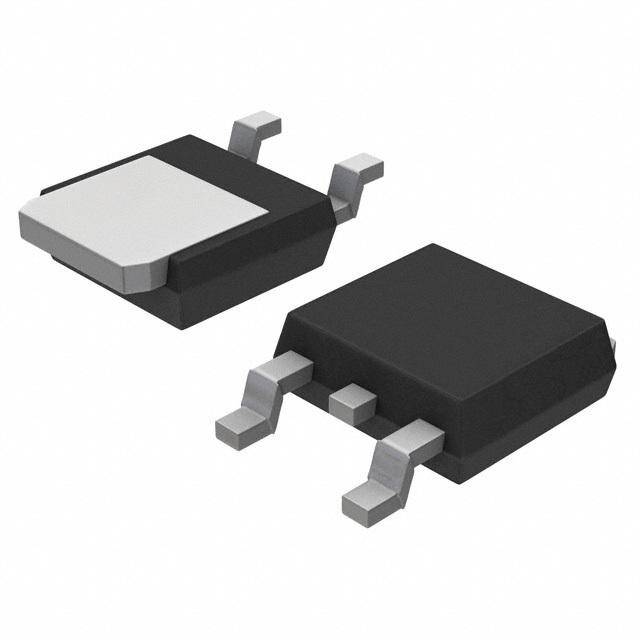

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This high voltage, bipolar power Darlington transistor has been specifically designed for inductive applications such as Electronic Ignition, Switching Regulators and Motor Control.
Features | | Benefits
---|---|---
| | | | |
Exceptional Safe Operating Area
| |
Reliable Performance at Higher Powers
High VCE
| |
Designed for Inductive Loads
High Current Gain
| |
Very Low Current Requirements
NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
| |
These are PbFree Devices
| |

Show

NJVNJD35N04T4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Halogen Free Status	Halogen Free
Polarity	NPN
Power Dissipation	45 W
Breakdown Voltage (Collector to Emitter)	350 V
Continuous Collector Current	4A
hFE Min	2000
Input Power (Max)	45 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Gain Bandwidth	90MHz (Min)
Power Dissipation (Max)	45000 mW
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
