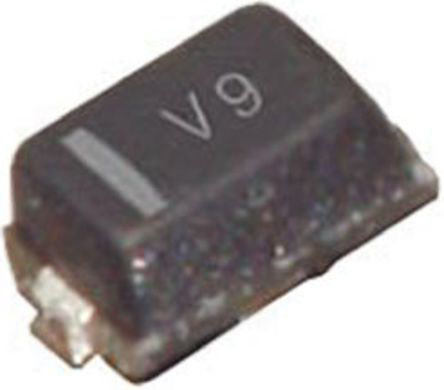

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NSR0130P2T5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-923
Number of Positions	2 Position
Forward Voltage	0.525 V
Power Dissipation	200 mW
Thermal Resistance	600℃/W (RθJA)
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	525 mV
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	0.85 mm
Size-Width	0.65 mm
Size-Height	0.43 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
