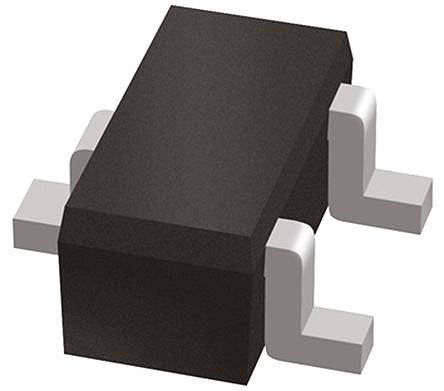

NTA4001NT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1731126
Category:
MOSFET, MOSFET Transistor
Package:
SC-75-3
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET 20V 238mA 1.5Ω Single N-Channel SC-75 with ESD Protection, SC-75 (SOT-416) 3 LEAD, 3000-REEL
Stock Locations:
Availability:
4,375 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.14

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTA4001NT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-75-3
Voltage Rating (DC)	20.0 V
Current Rating	238 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.5 Ω
Polarity	N-Channel
Power Dissipation	300 mW
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20 V
Breakdown Voltage (Gate to Source)	±10.0 V
Continuous Drain Current (Ids)	238 mA
Rise Time	15 ns
Input Capacitance (Ciss)	20pF @5V(Vds)
Input Power (Max)	300 mW
Fall Time	60 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	1.65 mm
Size-Width	0.9 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
