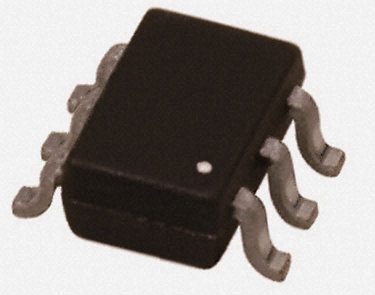

Image is for your reference only,please check specifications for details

NTGS4141NT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC14037740
Category:
MOSFET, MOSFET Transistor
Package:
SOT-23-6
Datasheet:
Datasheet 3D Model
Description:
N-Channel 30V 25mOhm 0.5W(1/2W) Surface Mount Power MOSFET - TSOP-6
Stock Locations:
Availability:
1,707 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Power MOSFET Features • Low RDS(on) • Low Gate Charge • Pb−Free Package is Available Applications • Load Switch • Notebook PC • Desktop PC

Show

NTGS4141NT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Voltage Rating (DC)	30.0 V
Current Rating	5.00 A
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.0215 Ω
Polarity	N-Channel
Power Dissipation	2 W
Threshold Voltage	3 V
Input Capacitance	560 pF
Gate Charge	12.0 nC
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	7.00 A
Rise Time	15 ns
Input Capacitance (Ciss)	560pF @24V(Vds)
Input Power (Max)	500 mW
Fall Time	4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500mW (Ta)
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
