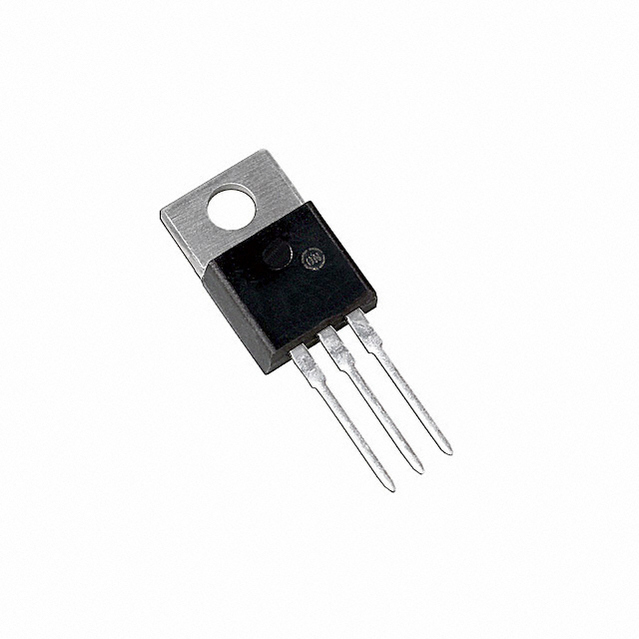

Image is for your reference only,please check specifications for details

Updated at 29/06/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTP85N03 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	28.0 V
Current Rating	85.0 A
Drain to Source Resistance (on) (Rds)	6.10 mΩ
Polarity	N-Channel
Power Dissipation	80W (Tc)
Drain to Source Voltage (Vds)	28 V
Breakdown Voltage (Drain to Source)	28.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	85.0 A
Rise Time	22.0 ns
Input Capacitance (Ciss)	2150pF @24V(Vds)
Input Power (Max)	80 W
Power Dissipation (Max)	80W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
