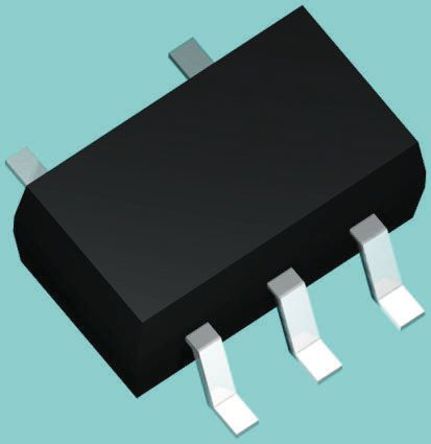

Image is for your reference only,please check specifications for details

NUP2114UPXV5T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC40832123
Category:
TVS Diode
Package:
SOT-553
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NUP2114UPXV5T1G TVS Diode, NUP2114 Series, Unidirectional, 5V, 12V, SOT-553, 5Pins
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NUP2114 series low capacitance ESD protection Transient Voltage Suppressor Diode for high speed data. It is designed to protect high speed data lines from ESD. Ultra-low capacitance and high level of ESD protection makes this device well suited for use in USB 2.0 applications.
0.8pF Low capacitance
AEC-Q101 qualified and PPAP capable
Low clamping voltage
Low leakage
ESD rating of Class 3B (exceeding 8kV) per human body model
ESD rating of Class C (exceeding 400V) per machine model
IEC 61000-4-2 level 4 ESD protection
-40 to 125°C Operating temperature range

Show

NUP2114UPXV5T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-553
Operating Voltage	5.00 V
Halogen Free Status	Halogen Free
Number of Positions	5 Position
Clamping Voltage	10 V
Test Current	1 mA
Max Breakdown Voltage	7.5 V
Min Breakdown Voltage	5.5 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	1.7 mm
Size-Width	1.3 mm
Size-Height	0.6 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
