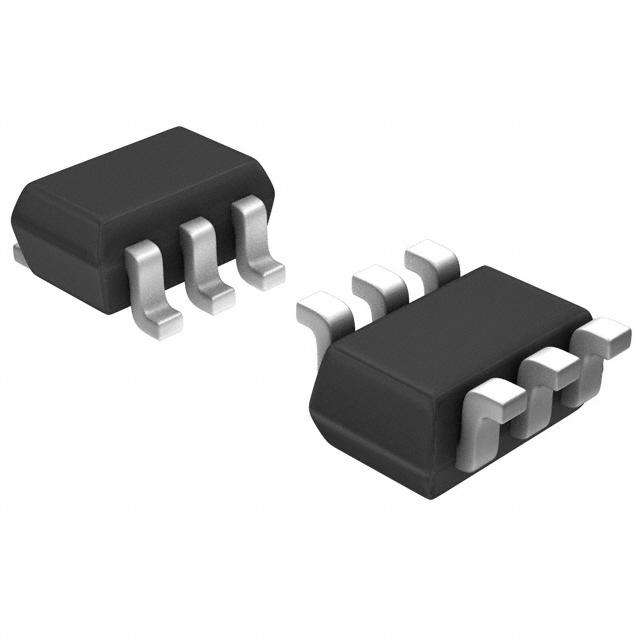

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Mosfet Array 2 N-Channel (Dual) 60V 295mA 250mW Surface Mount SC-88/SC70-6/SOT-363
NVJD5121NT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-363 |
| Number of Positions | 6 Position |
| Drain to Source Resistance (on) (Rds) | 1 Ω |
| Polarity | N-CH |
| Power Dissipation | 250 mW |
| Threshold Voltage | 1.7 V |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 0.3A |
| Rise Time | 34 ns |
| Input Capacitance (Ciss) | 26pF @20V(Vds) |
| Input Power (Max) | 250 mW |
| Fall Time | 32 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 319 mW |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
