Description

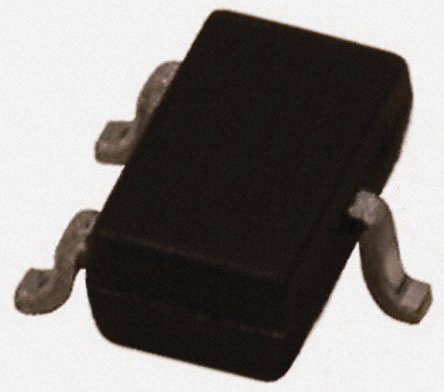

The PMF170XP is a P-channel enhancement mode Field-Effect Transistor with low drain-source on-state resistance and fast switching.
Trench MOSFET technology
Very fast switching

Show

PMF170XP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-323
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.175 Ω
Polarity	P-Channel
Power Dissipation	290 mW
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	1A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.67 W
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
