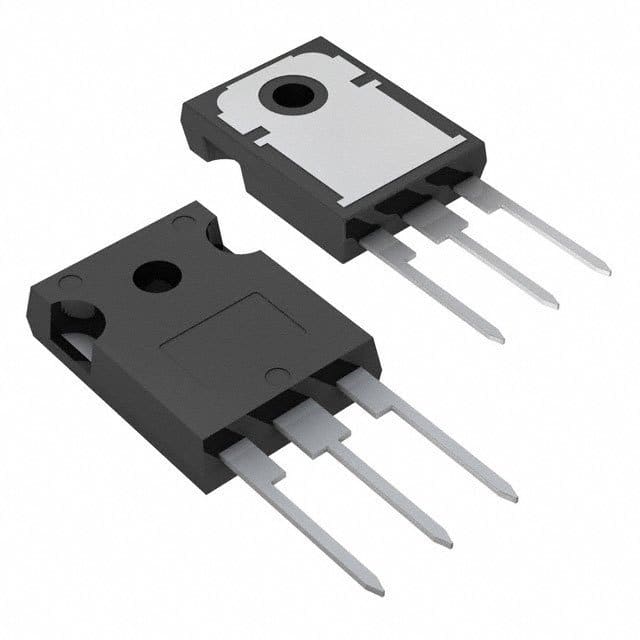

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SCTW40N120G2VAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Rise Time	5 ns
Input Capacitance (Ciss)	1230pF @800V(Vds)
Fall Time	13 ns
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	290000 mW
	Show
Product Lifecycle Status	Active
RoHS	Request inventory verification
Lead-Free Status	Lead Free
