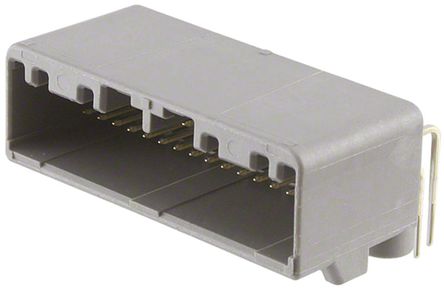

Image is for your reference only,please check specifications for details
- MX34032NF2 - JAE Electronics
-
Manufacturer:JAE Electronics
-
ManyChip's Part#:MC65506694
-
Category:PCB Connector Pin
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:JAPAN AVIATION ELECTRONICS INDUSTRY MX34032NF2 Rectangular Power Connector, Right Angle, Through Hole, Plug, 32Contacts, 2.2mm, Pin
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- MX34 90° Header 2 Row
- For MX34 socket housings see typical stock numbers: 690-9852
MX34032NF2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | - |
| Number of Contacts | 32 Contact |
| Gender | Male |
| Contact Plating | Tin |
| Current Rating | 3 A |
| Insulation Resistance | 100 MΩ |
| Number of Rows | 2 Row |
| Number of Positions | 32 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Color | Gray |
| Contact Material | Brass |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
