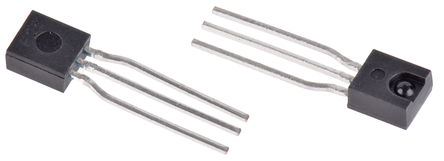

QSE159 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC68450936
Category:
Fiber Optic
Package:
Side Looker
Datasheet:
Datasheet 3D Model
Description:
QSE159 Series 880nm Through Hole Plastic Silicon Optologic Photosensor
Stock Locations:
Availability:
1,500 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.74

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The QSE15X family are OPTOLOGIC® ICs which feature a Schmitt trigger at output which provides hyster esis for noise immunity and pulse shaping. The basic building block of this IC consists of a photodiode, a linear amplifier, voltage regulator, Schmitt trigger and four output options. The TTL/LSTTL compatible output can drive up to ten TTL loads over supply currents from 4.5 to 16.0 Volts. The devices are marked with a color stripe for easy identification.
Features
■ Bipolar silicon IC
■ Package type: Sidelooker
■ Medium wide reception angle, 50°
■ Package material and color: black epoxy
■ Also available in clear package: “C” suffix
■ Matched emitter: QEE113/QEE123
■ Daylight filter
■ High sensitivity
■ Direct TTL/LSTTL interface

Show

QSE159 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Side Looker
Supply Voltage (DC)	12.0 V, 16.0 V (max)
Voltage Rating (DC)	18.0 V
Operating Voltage	30.0 V
Output Voltage	35.0 V, 35.0 V (max)
Output Current	50 mA
Supply Current	5 mA
Number of Channels	1 Channel
Wavelength	880 nm
Input Current	5.00 mA
Power Dissipation	100 mW
Rise Time	100 ns
Output Voltage (Max)	35 V
Fall Time	100 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	4.49 mm
Size-Width	2.59 mm
Size-Height	5.08 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
