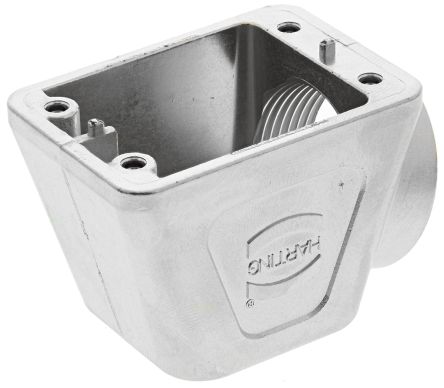

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Connectivity needs vary and HARTING’s Han-Modular® Series is designed to meet the unique needs of any customer. With decreased time in project schedules and the increased need for flexibility and space optimization, HARTING’s modular solutions are a perfect fit. Han-Modular® inserts can be used in any
standard Han® hood with a Han® docking frame. The pneumatic contacts are also suitable for the connection of liquid
media. However it must be stated that a combination of electrical and
liquid connections in one connector is not allowed according to VDE
regulations.
The individual contacts used in this system are all from existing well
proven ranges and it is possible to use combinations of 1 to 12 modules
depending on the size of the hoods and housings chosen.
The basic modules snap into a mounting frame and can be exchanged
separately at any time.
Advantages:
? Custom designs can be simply assembled
? Optimum solutions can be reached
? Stock can be minimized

Show

19140010501 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
