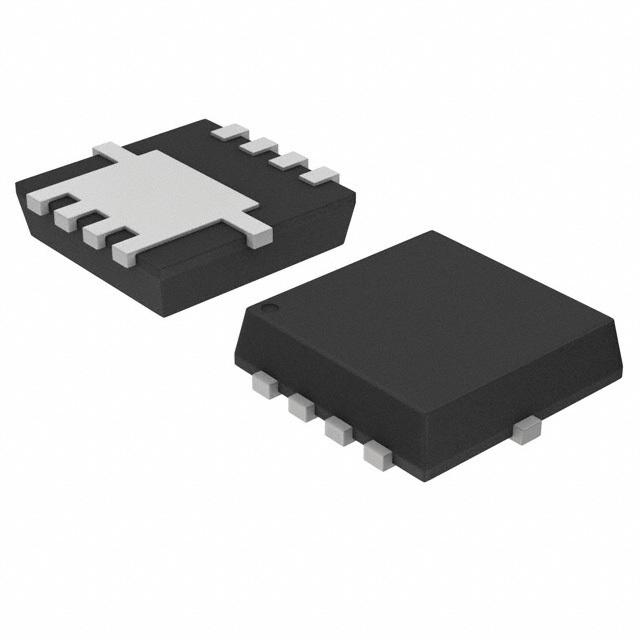

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 30V 22A (Ta), 102A (Tc) 3.2W (Ta), 68W (Tc) Surface Mount 8-WDFN (3.3x3.3)
NVTFS4C05NTAG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | WDFN-8 |
| Halogen Free Status | Halogen Free |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.0029 Ω |
| Polarity | N-Channel |
| Power Dissipation | 3.2 W |
| Threshold Voltage | 2.2 V |
| Drain to Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Ids) | 22A |
| Rise Time | 25 ns |
| Input Capacitance (Ciss) | 1988pF @15V(Vds) |
| Fall Time | 5 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3.2W (Ta), 68W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
