Description

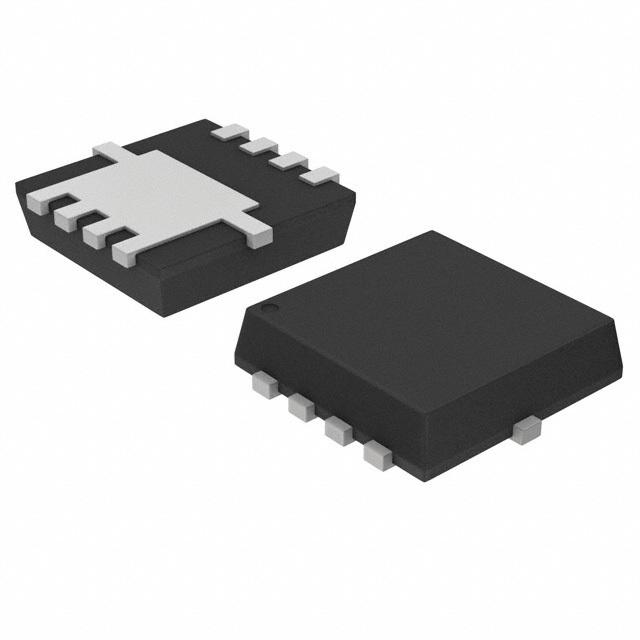

Create an effective common drain amplifier using this NVTFS4C13NTAG power MOSFET from ON Semiconductor. Its maximum power dissipation is 26000 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 175 °C.

Show

NVTFS4C13NTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WDFN-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0075 Ω
Power Dissipation	26 W
Threshold Voltage	2.1 V
Drain to Source Voltage (Vds)	30 V
Input Capacitance (Ciss)	770pF @15V(Vds)
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3W (Ta), 26W (Tc)
	Show
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
