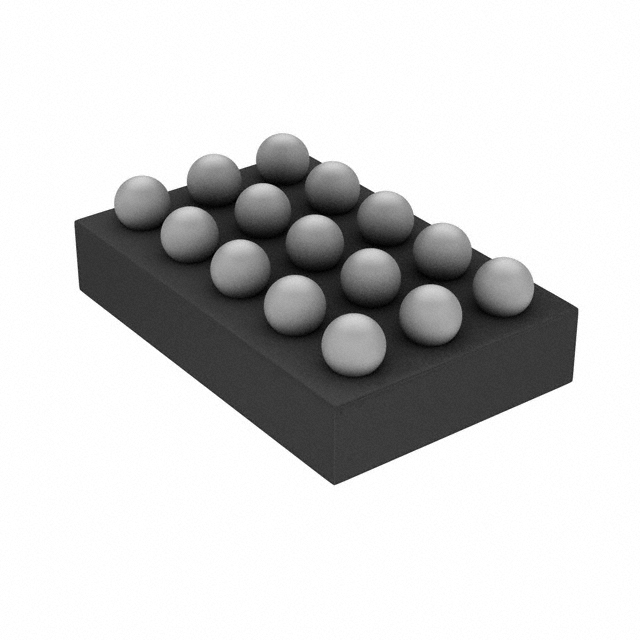

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NX20P5090UKAZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	15 Pin
Case/Package	WLCSP-15
Number of Outputs	1 Output
Input Voltage (DC)	20.0 V
Output Voltage	0V ~ 5.5V
Number of Positions	15 Position
Power Dissipation	1450 mW
Rise Time	6900 µs
Input Voltage (Max)	20 V
Input Voltage (Min)	2.5 V
Output Current (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1450 mW
Input Voltage	20 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
