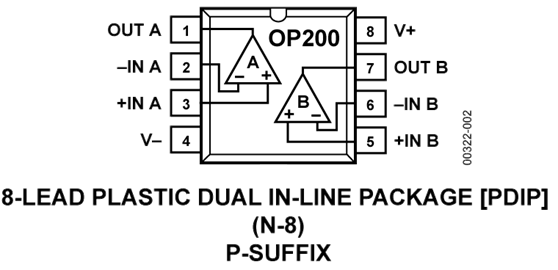

Image is for your reference only,please check specifications for details
- OP200GSZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC298640
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES OP200GSZ Operational Amplifier, Dual, 2 Amplifier, 500kHz, 0.15V/µs, ± 3V to ± 18V, WSOIC, 16Pins
-
Stock Locations:
-
Availability:253 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.13
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The OP200 is the first monolithic dual operational amplifier to offer OP77 type precision performance. Available in the industry standard 8-lead pinout, the OP200 combines precision performance with the space and cost savings offered by a dual amplifier.
- The OP200 features an extremely low input offset voltage of less than 75 μV with a drift below 0.5 μV/°C, guaranteed over the full military temperature range. Open-loop gain of the OP200 exceeds 5,000,000 into a 10 kΩ load; input bias current is under 2 nA; CMRR is over 120 dB; and PSRR is below 1.8 μV/V. On-chip Zener zap trimming is used to achieve the extremely low input offset voltage of the OP200 and eliminates the need for offset pulling.
- Power consumption of the OP200 is low, with each amplifier drawing less than 725 μA of supply current. The total current drawn by the dual OP200 is less than one-half that of a single OP07, yet the OP200 offers significant improvements over this industry-standard op amp. The voltage noise density of the OP200, 11 nV/√Hz at 1 kHz, is half that of most competitive devices.
- The OP200 is an ideal choice for applications requiring multiple precision op amps and where low power consumption is critical.
- For a quad precision op amp, see the OP400.
- ### Features and Benefits
- Low input offset voltage: 75 μV maximum
- Low offset voltage drift, over −55°C < TA < +125°C
- 0.5 μV/°C maximum
- Low supply current (per amplifier): 725 μA maximum
- High open-loop gain: 5000 V/mV minimum
- Low input bias current: 2 nA maximum
- Low noise voltage density: 11 nV/√Hz at 1 kHz
- Stable with large capacitive loads: 10 nF typical
OP200GSZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Current | 570 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 16 Position |
| Common Mode Rejection Ratio | 130 dB |
| Bandwidth | 500 kHz |
| Slew Rate | 150 mV/μs |
| Gain Bandwidth Product | 500 kHz |
| Input Impedance | 125 GΩ |
| Input Offset Voltage | 80 µV |
| Input Bias Current | 100 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 500 kHz |
| Minimum CMRR Range | 110 dB |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | Yes |
| REACH SVHC Compliance Edition | 2015/12/17 |
