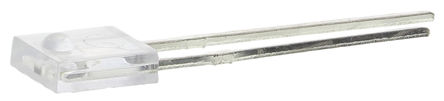

Image is for your reference only,please check specifications for details

OP240A - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC16916992
Category:
Light Source, Emitter
Datasheet:
Datasheet 3D Model
Description:
OP240A Series 890nm 40° 50mA Through Hole Plastic Infrared Emitting Diode
Stock Locations:
Availability:
1,144 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OP240A is a Plastic Infrared Emitting Diode with dome lens and wide irradiance pattern. The OP240 series high intensity gallium aluminium arsenide infrared emitting diode is suited for use as a PCB mounted slotted switch or an easy mount PCB interrupter.
Wavelength matched to silicon"s peak response
Mechanically and spectrally matched to other OPTEK products

Show

OP240A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Number of Positions	2 Position
Forward Voltage	1.8 V
Wavelength	890 nm
Viewing Angle	40°
Peak Wavelength	890 nm
Power Dissipation	100 W
Rise Time	500 ns
Test Current	20 mA
Forward Current	50 mA
Maximum Forward Voltage (Max)	1.8 V
Forward Current (Max)	50 mA
Fall Time	250 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	4.45 mm
Size-Width	4.45 mm
Size-Height	5.72 mm
Lead Length	12.7 mm
Operating Temperature	-40℃ ~ 100℃ (TA)
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
