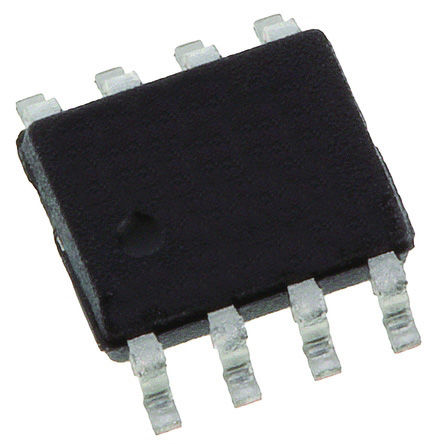

Image is for your reference only,please check specifications for details

OPA227U - TI
Manufacturer:
TI
ManyChip's Part#:
MC2458104
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA227U Operational Amplifier, Single, 8MHz, 1, 2.3V/ s, 2.5V to 18V, 5V to 15V, SOIC, 8
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.06

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA227U is an Operational Amplifier combines low noise and wide bandwidth with high precision to make them the ideal choice for applications requiring both AC and precision DC performance. The OPAx227 is unity-gain stable and features high slew rate (2.3V/µs) and wide bandwidth (8MHz). The OPAx227 series operational amplifier is pin-for-pin replacements for the industry standard OP-27 and OP-37 with substantial improvements across the board.
3nV/√Hz Low noise
5µs Settling time
138dB High CMRR
160dB High open-loop gain
10nA Maximum low input bias current
75µV Maximum low offset voltage
0.1µV/°C Typical offset drift
Green product and no Sb/Br

Show

OPA227U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	15.0 V
Supply Current	3.7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	120dB ~ 138dB
Input Offset Drift	100 nV/K
Bandwidth	8 MHz
Slew Rate	2.30 V/μs
Gain Bandwidth Product	8 MHz
Input Offset Voltage	5 µV
Input Bias Current	2.5 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	8 MHz
Minimum CMRR Range	120 dB
Supply Voltage (Max)	36 V
Supply Voltage (Min)	5 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
