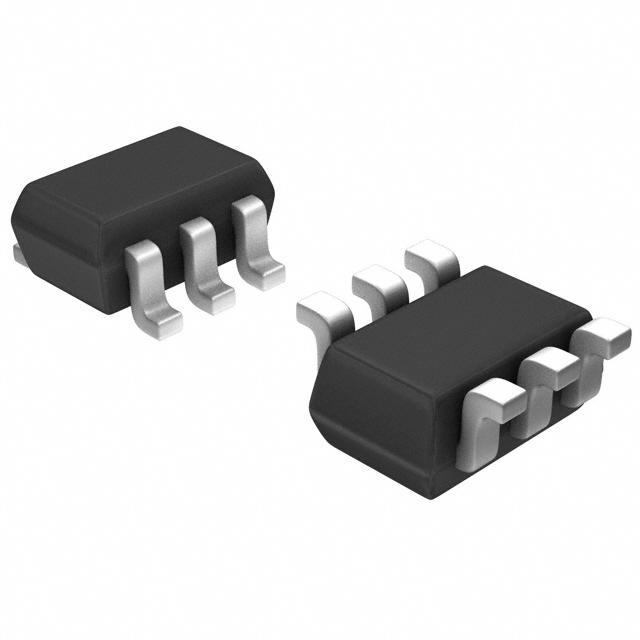

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- •3V Video Amplifier with 6dB Gain and Filter in SC70 •EXCELLENT VIDEO PERFORMANCE •INTERNAL GAIN: 6dB •2−POLE RECONSTRUCTION FILTER •SAG CORRECTION − Reduces Coupling Capacitor Size •INPUT RANGE INCLUDES GROUND − DC-Coupled Input •INTEGRATED LEVEL SHIFTER − DC-Coupled Output − No Output Capacitors Needed • RAIL-TO-RAIL OUTPUT •LOW QUIESCENT CURRENT: 6mA • SHUTDOWN CURRENT: 5 A •SINGLE-SUPPLY: 2.7V to 3.3V
OPA360AIDCKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-70-6 |
| Output Current | 80 mA |
| Supply Current | 6 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Gain | 6.00 dB |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 3.3V |
| Supply Voltage (Max) | 3.3 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
