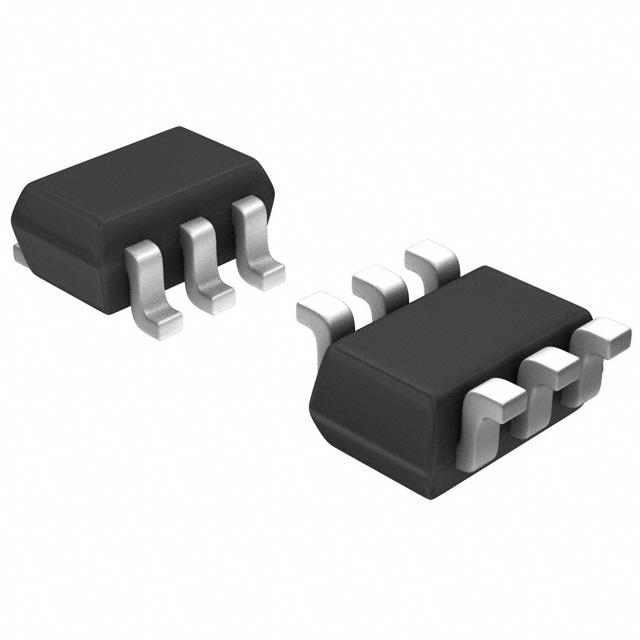

OPA361AIDCKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC31553373
Category:
Video Amplifier, CATV Amplifier IC
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA361AIDCKT Video Amplifier, 1 Amplifiers, 9MHz, -40℃, 125℃, 80mA
Stock Locations:
Availability:
430 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.22

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA361 high-speed amplifier is optimized for 3V portable video applications. It is specifically designed to be compatible with the video encoders embedded in Texas Instruments OMAP2420 and DaVinci processors or other application processors with 0.5VPP video output. The input common-mode range includes GND, which allows a video-DAC (digital-to-analog converter) to be DC-coupled to the OPA361. The TV-detection feature simplifies the end-user interface significantly by facilitating the automatic start/stop of video transmission.
The output swings within 5mV of GND and 250mV to V+ with a standard back-terminated video load (150). An internal level shift circuit prevents the output from saturating with 0V input, thus preventing sync-pulse clipping in common video circuits. Therefore, the OPA361 is ideally suited for DC-coupling to the video load.
The OPA361 has been optimized for space-sensitive applications by integrating internal gain setting resistors (G = 5.2V/V) and a 2-pole video-DAC reconstruction filter.
In shutdown mode, the quiescent current is reduced to < 1.5µA, dramatically reducing power consumption and prolonging battery life.
The OPA361 is available in the tiny 2mm x 2.1mm SC70-6 package.

Show

OPA361AIDCKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Output Current	80 mA
Supply Current	5.3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Quiescent Current	5.30 mA
Gain	14.3 dB
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	9 MHz
Supply Voltage	2.5V ~ 3.3V
Supply Voltage (Max)	3.3 V
Supply Voltage (Min)	2.5 V
	Show
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
