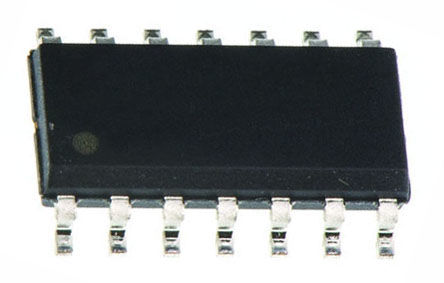

Image is for your reference only,please check specifications for details

OPA4131NJ - TI
Manufacturer:
TI
ManyChip's Part#:
MC4638263
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA4131NJ Operational Amplifier, Quad, 4 Amplifier, 4MHz, 10V/µs, 9V to 36V, SOIC, 14Pins
Stock Locations:
Availability:
245 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.11

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA4131NJ is a FET-input Operational Amplifier provides high performance. It offers excellent general-purpose performance, including low offset voltage, drift and good dynamic characteristics. Performance grades include commercial and industrial temperature ranges.
Excellent capacitive load drive
50pA Maximum FET input
750µV Maximum low offset voltage
2µV/°C Offset drift
80dB Typical CMRR
Green product and no Sb/Br

Show

OPA4131NJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Current	1.5 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	70dB ~ 80dB
Input Offset Drift	2.00 µV/K
Bandwidth	4 MHz
Slew Rate	10.0 V/μs
Gain Bandwidth Product	4 MHz
Thermal Shutdown	No
Input Offset Voltage	1.5 mV
Input Bias Current	5 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	4 MHz
Minimum CMRR Range	70 dB
Supply Voltage	9V ~ 36V
	Show
Size-Length	8.65 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
