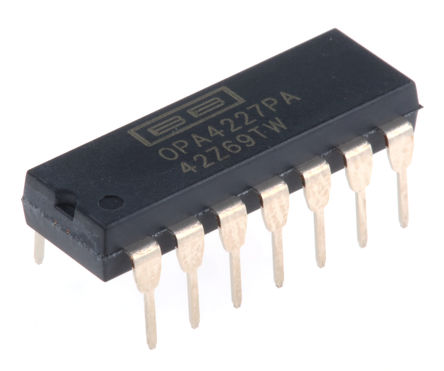

Image is for your reference only,please check specifications for details
- OPA4227PA - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2672604
-
Category:Operational Amplifier, OP Amp IC
-
Package:DIP-14
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Quad, 4 Amplifier, 8MHz, 2.3V/µs, ± 2.5V to ± 18V, DIP, 14Pins
-
Stock Locations:
-
Availability:235 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.57
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA4227PA is a quad Operational Amplifier combine low noise and wide bandwidth with high precision to make them the ideal choice for applications requiring both AC and precision DC performance. The OPAx227 is unity-gain stable and features high slew rate (2.3V/µs) and wide bandwidth (8MHz). The OPAx227 series operational amplifier is pin-for-pin replacements for the industry standard OP-27 and OP-37 with substantial improvements across the board.
- 3nV/√Hz Low noise
- 5µs Settling time (significant improvement over OP-27)
- 138dB High CMRR
- 160dB High open-loop gain
- 10nA Maximum low input bias current
- 75µV Maximum low offset voltage
- Green product and no Sb/Br
OPA4227PA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | DIP-14 |
| Supply Voltage (DC) | 36.0 V |
| Supply Current | 3.7 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 14 Position |
| Common Mode Rejection Ratio | 120 dB |
| Input Offset Drift | 300 nV/K |
| Bandwidth | 8 MHz |
| Slew Rate | 2.30 V/μs |
| Gain Bandwidth Product | 8 MHz |
| Input Offset Voltage | 10 µV |
| Input Bias Current | 2.5 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 8 MHz |
| Minimum CMRR Range | 120 dB |
| Show | |
| Size-Length | 19.3 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
