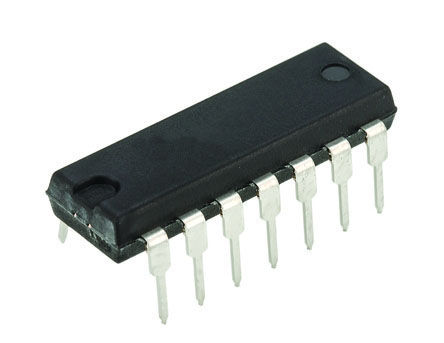

Image is for your reference only,please check specifications for details

OPA4344PA - TI
Manufacturer:
TI
ManyChip's Part#:
MC73405503
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA4344PA Operational Amplifier, 4 Amplifier, 1MHz, 0.8V/µs, 2.5V to 5.5V, DIP, 14Pins
Stock Locations:
Availability:
10,650 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.28

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA4344PA is a quad low power CMOS Operational Amplifier designed for precision, low-power and miniature applications. The OPA344 is unity gain stable and has a gain-bandwidth product of 3MHz. The OPA344 is optimized to operate on a single supply from 2.5 and up to 5.5V with an input common-mode voltage range that extends 300mV beyond the supplies. Quiescent current is only 250µA (maximum). Rail-to-rail input and output make them ideal for driving sampling analog-to-digital converters. It is also well suited for general purpose applications and providing I/V conversion at the output of D/A converters. Quad version has identical specs for design flexibility.
0.006% THD + noise
3µV/°C Typical offset drift
92dB Typical CMRR
Green product and no Sb/Br

Show

OPA4344PA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Current	150 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	66 dB
Input Offset Drift	3.00 µV/K
Bandwidth	1 MHz
Slew Rate	800 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	200 µV
Input Bias Current	0.2 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Supply Voltage	2.5V ~ 5.5V
	Show
Size-Length	19.69 mm
Size-Width	6.6 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
