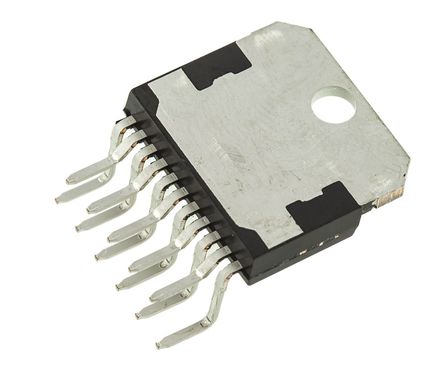

OPA541AP - TI
Manufacturer:
TI
ManyChip's Part#:
MC952300
Category:
Operational Amplifier, OP Amp IC
Package:
TO-220-11
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 1.6MHz, 10V/µs, 20V to 70V, TO-220, 11Pins
Stock Locations:
Availability:
328 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 41.94

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA541AP is a high power, monolithic FET input operational amplifier in 11 pin TO-220 package. Internal current limit circuitry can be user programmed with single external resistor protecting amplifier and load from fault conditions. The OPA541 is fabricated using a proprietary bipolar/FET process. It uses single current limit resistor to set both positive and negative current limits. Applications currently using hybrid power amplifiers requiring two current limit resistors need not be modified.
Capable of operation from power supplies up to ±40V
Continuous current of 5A and peak current of 10A
Programmable current limit
Gain bandwidth product of 1.6MHz
Slew rate of 10V/µs
Input offset voltage of ±2mV
Input bias current of 4pA
Common mode rejection of 113dB
Power supply voltage from ±10V to ±35V
Operating temperature range from -25°C to 85°C
This integrated circuit can be damaged by ESD. Failure to observe proper handling and installation procedures can cause damage.

Show

OPA541AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	11 Pin
Case/Package	TO-220-11
Supply Voltage (DC)	80.0 V
Operating Voltage	10V ~ 35V
Supply Current	20 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	11 Position
Power Dissipation	125 W
Common Mode Rejection Ratio	95 dB
Input Offset Drift	15.0 µV/K
Bandwidth	1.6 MHz
Slew Rate	10.0 V/μs
Gain Bandwidth Product	1.6 MHz
Input Offset Voltage	2 mV
Input Bias Current	4 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Gain Bandwidth	1.6 MHz
Minimum CMRR Range	95 dB
Supply Voltage	20V ~ 70V
Supply Voltage (Max)	35 V
	Show
Size-Length	20.02 mm
Size-Width	10.7 mm
Size-Height	4.5 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
